When water shows up at the bottom of a wall, most homeowners assume the leak must be directly behind that wall.
That is a reasonable assumption, but it is not always correct. Water can travel along framing, flooring, cabinets, baseboards, and hidden openings before it finally becomes visible. That means a leak that looks like a dining room wall problem can actually be coming from somewhere else.
That is exactly what happened on this Palm Harbor water leak detection job.

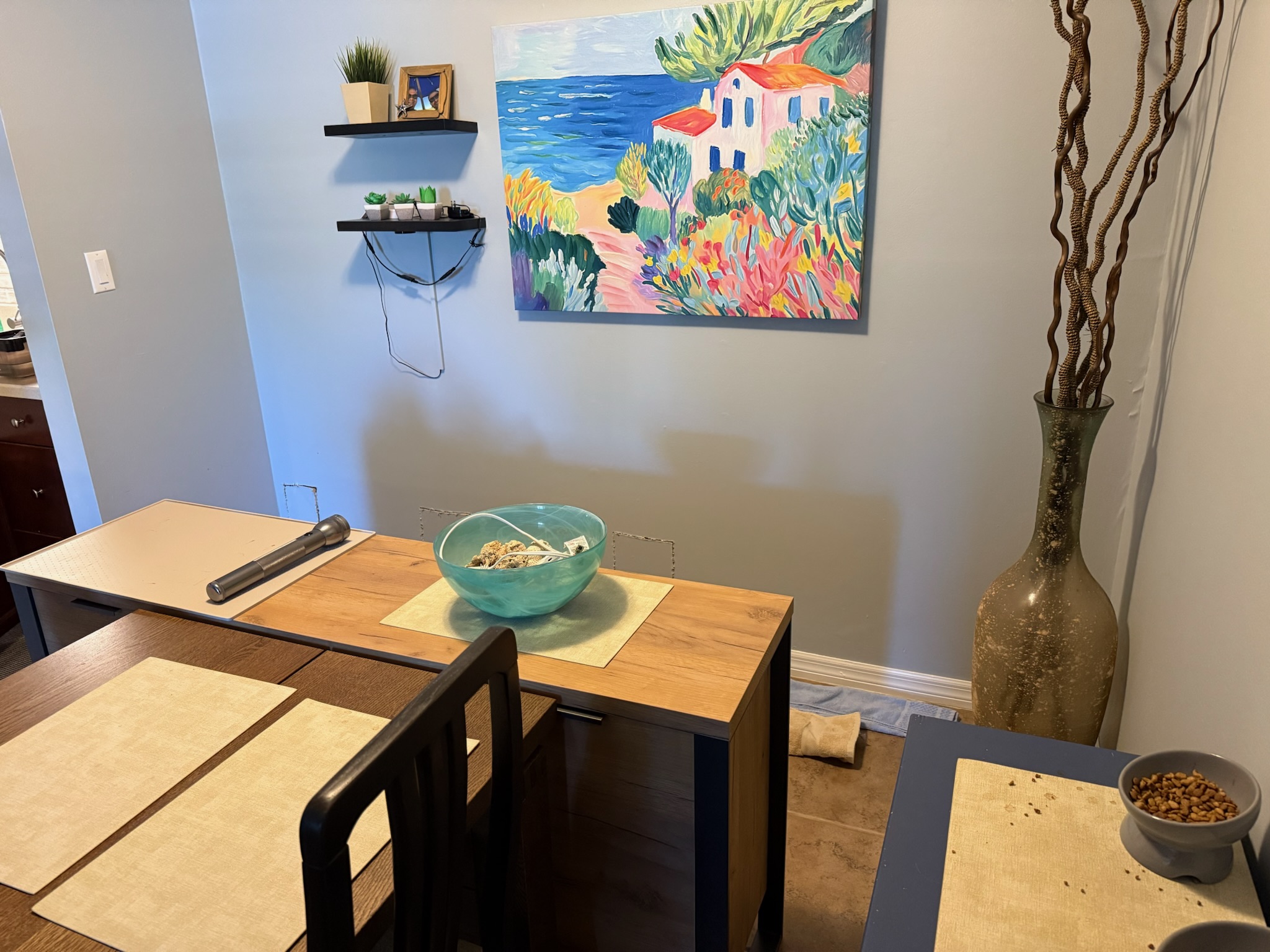

A homeowner had water showing up near a modern dining room wall. Before I Find Leaks was called, holes had already been cut into the wall in an attempt to find the leak. The drywall pieces were placed back into the openings, but the source of the leak still had not been confirmed.
This is one of the reasons homeowners call I Find Leaks before more walls are opened.
Plumbers are trained to repair plumbing. Once the leaking pipe is exposed, a good plumber can make the repair. Finding the exact source of a hidden leak is a different job. Leak detection requires a different process, different tools, and a different kind of investigation.
At I Find Leaks, we use equipment such as FLIR infrared cameras and ultrasonic listening equipment to help locate the source before unnecessary damage is made.
For homeowners in Palm Harbor, East Lake, Highland Lakes, Crystal Beach, Ozona, Greenbriar, Downtown Palm Harbor, and nearby Pinellas County communities, that difference matters.
The First Clue: The Wall Had Holes, But Was It Actually Wet?

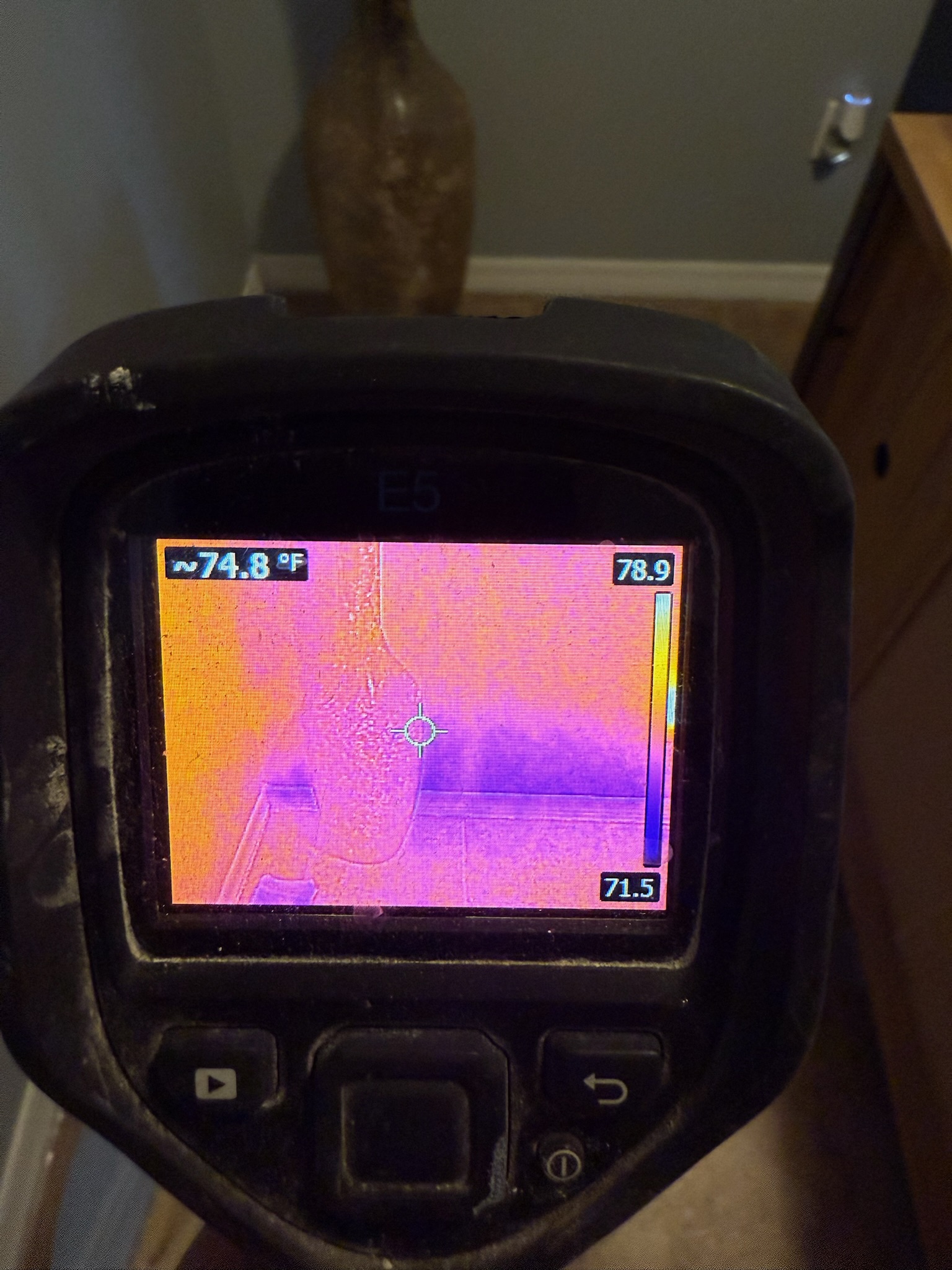

Jeremy with I Find Leaks, known as the Leak Whisperer, started by surveying the dining room wall with a FLIR infrared camera.
The goal was not to cut more holes.
The goal was to understand what the moisture pattern was telling us.
The visible water was showing up at the bottom of the wall. That made the wall look like the obvious suspect. But the FLIR camera told a different story.

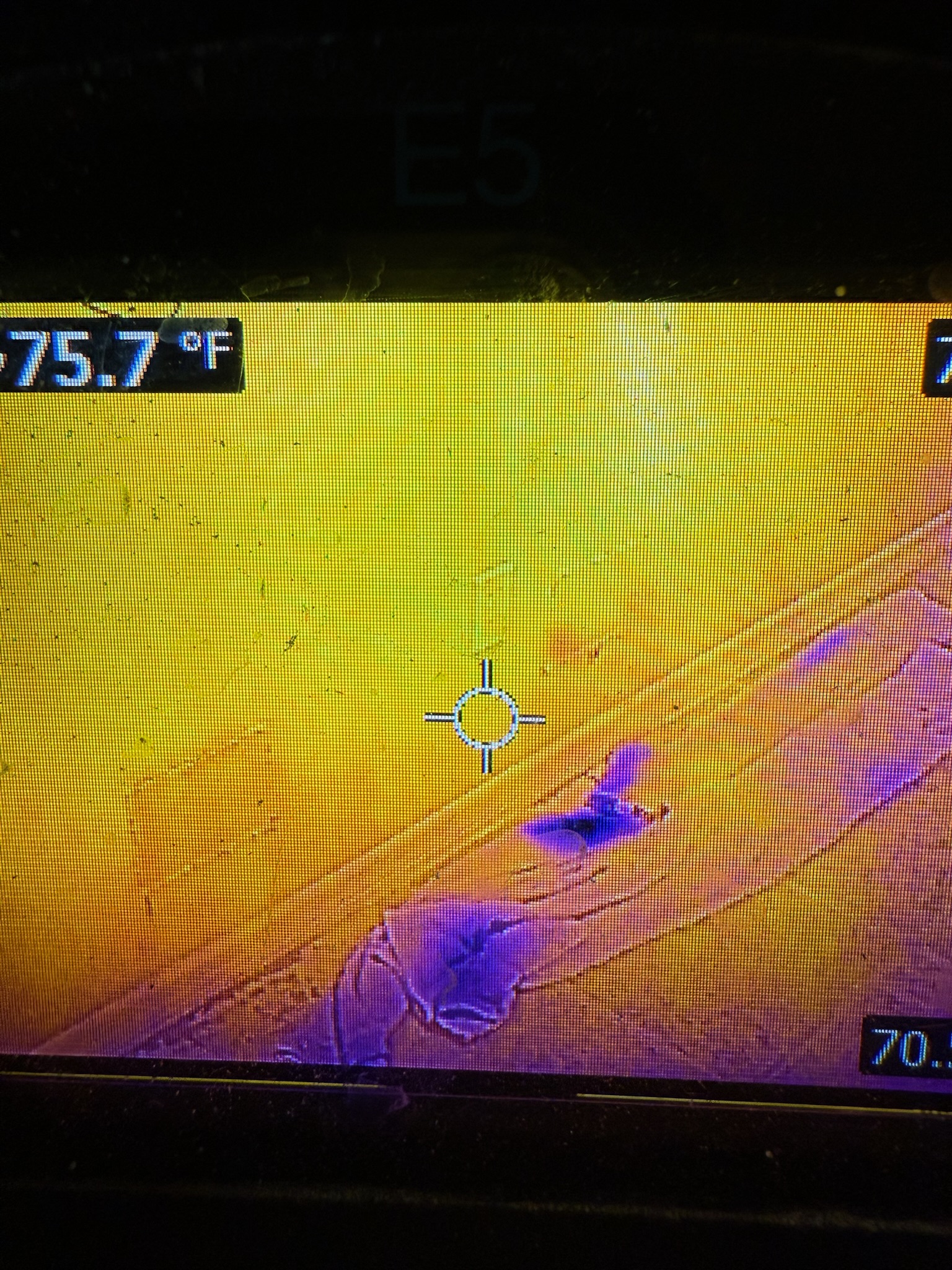

When Jeremy looked at the area where the holes had already been cut, the wall itself appeared dry on infrared.
The towels on the floor showed moisture. The wall did not.
That was a major clue.
If the wall had been the true source, we would expect to see a moisture pattern in that wall. Instead, the infrared camera showed that the previously opened area was not where the active leak was located.
This does not mean the plumber did anything malicious. It means the plumber was doing what many repair technicians do when they are trying to find a hidden pipe: open the area that seems most likely.
The problem is that water can travel.
That is why non-invasive leak detection should usually come before cutting.
Infrared Ruled Out the Dining Room Wall
The FLIR camera helped Jeremy avoid making the same mistake twice.
Instead of cutting more holes in the dining room wall, Jeremy used the infrared results as part of the investigation. The wall was not showing the moisture pattern of an active leak source. The water was showing up there, but the leak was likely somewhere else.
This is one of the biggest advantages of professional leak detection.
Sometimes the most valuable part of the inspection is not only finding where the leak is. It is also proving where the leak is not.
For Palm Harbor homeowners dealing with a hidden wall leak, a high water bill, wet flooring, baseboard moisture, or water showing up in a strange area, this step can prevent unnecessary damage.
Palm Harbor is part of Pinellas County, and many local water customers may need to review county water-bill and leak resources when a leak is suspected. Pinellas County provides a Water Leak Resources page, a Leak Detector Guide, a High Water Bill Check Sheet, and information for submitting a repaired water leak statement.
Those resources can help homeowners understand the billing side of a leak, but they do not locate the hidden pipe inside the home.
That is where I Find Leaks comes in.
Ultrasonic Listening Tracked the Leak to the Kitchen Sink
After the dining room wall was ruled out, Jeremy used ultrasonic listening equipment to continue tracking the leak.
The sound led away from the opened dining room wall and toward the kitchen sink area.
This is where the job changed.

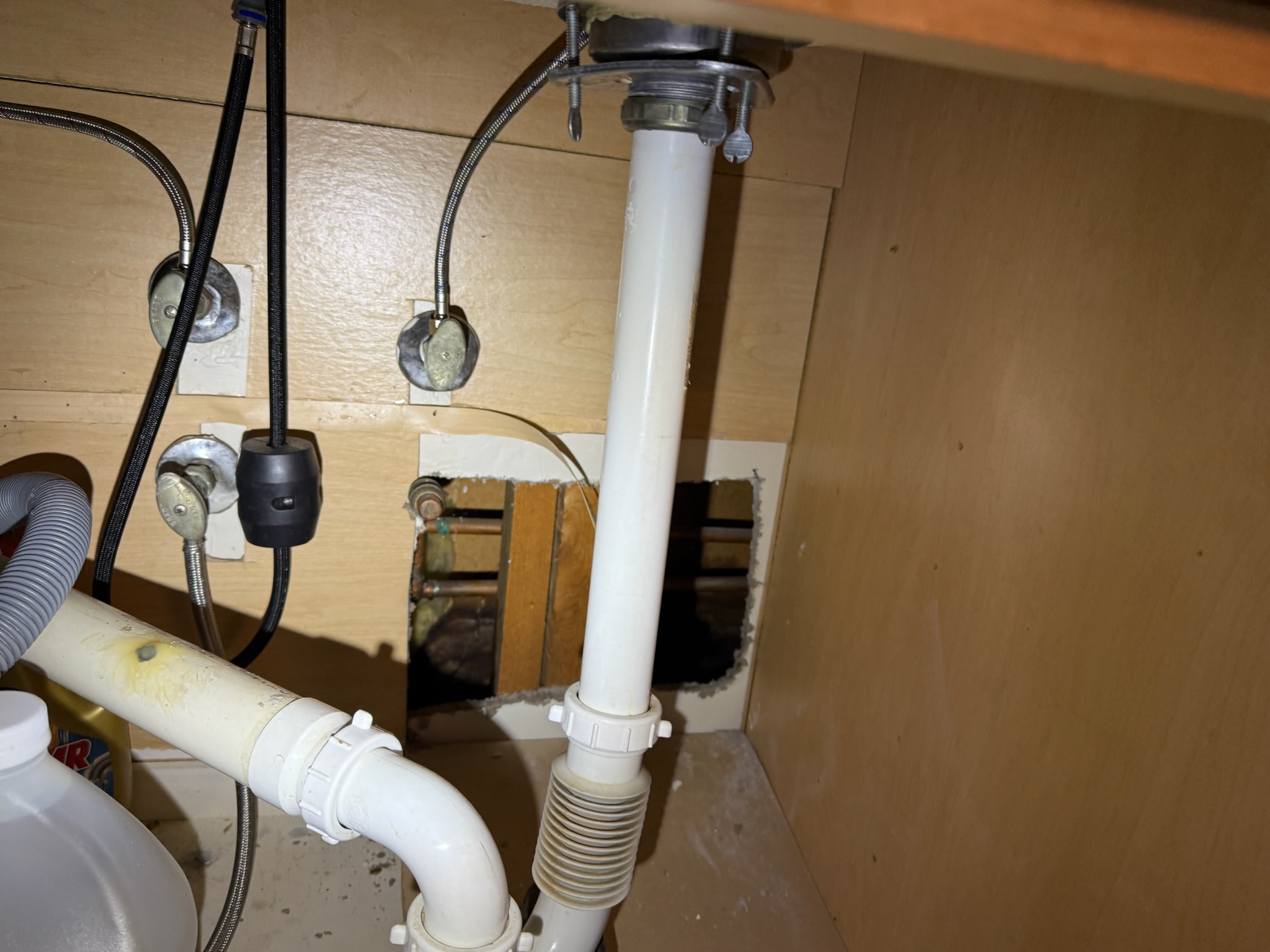

Instead of making another visible hole in the finished wall, Jeremy made a targeted opening in the back of the kitchen sink cabinet. This opening was hidden under the cabinet, away from the normal finished surfaces people see every day.
In this photo, you can see the sink drain, hot and cold water lines, copper piping, and the wall cavity behind the cabinet.
This was not a random hole.
This was a targeted opening based on the evidence from the leak detection process.
That is the difference between guessing and locating.
The Confirmed Leak: A Tiny Spiderweb Spray From a Copper Pipe
The final leak was small, but active.

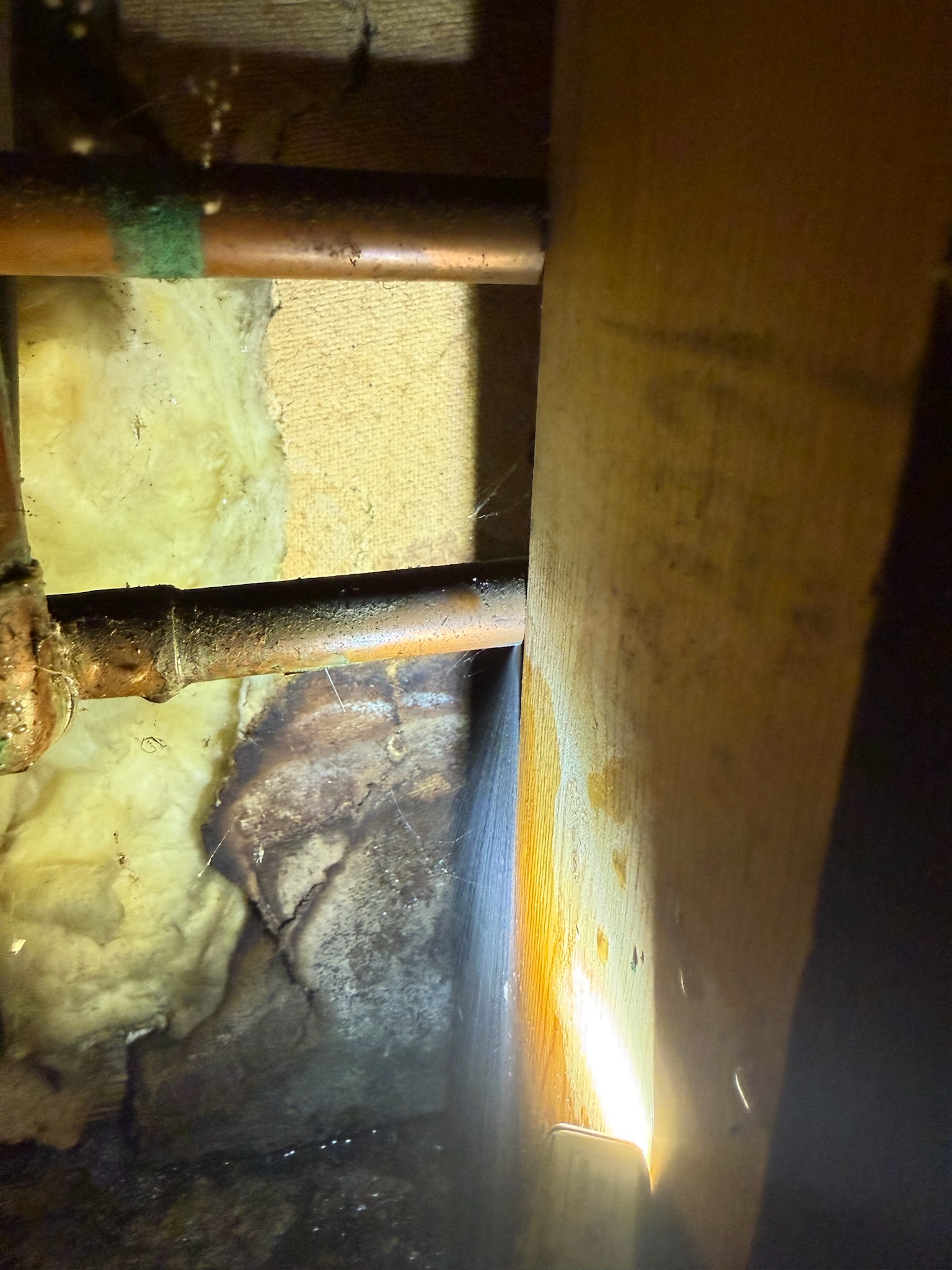

Behind the kitchen sink cabinet, on the lower copper pipe, there was a tiny spray coming out of the pipe. It looked almost like a spiderweb.
That tiny spray was the confirmed leak.
The important detail is where this leak was found.
It was not in the dining room wall where the original holes had been cut.
It was on the other side of the kitchen, under the sink area, behind the cabinet.
The water had traveled before it became visible.
Without infrared and ultrasonic leak detection, this kind of leak can lead to more holes, more frustration, and more repair work than necessary.
Why This Palm Harbor Leak Was Easy to Misread
This leak was easy to misread because the visible water showed up away from the actual leaking pipe.
That happens often in homes.
Water can follow gravity, framing, flooring, pipe penetrations, cabinet bases, and wall cavities. By the time the homeowner sees water, the actual source may be several feet away or even in a different room.
In this Palm Harbor home, the dining room wall looked like the problem.
But the infrared camera showed that the wall was dry.
Then ultrasonic listening equipment helped Jeremy track the leak to the kitchen sink cabinet.
Finally, the tiny copper pipe spray confirmed the source.
That is why I Find Leaks focuses on locating the leak before the repair begins.
Call I Find Leaks Before More Holes Are Cut
If you have water showing up inside your Palm Harbor home, do not assume the wettest area is where the pipe is leaking.
The source may be inside a wall, under a cabinet, below flooring, under a slab, or several feet away from where the water appears.
I Find Leaks provides water leak detection using professional tools such as thermal and electronic leak detection to help locate hidden leaks with less unnecessary damage.
This Palm Harbor job is a good example of why the detection should happen before the cutting.
The first holes were cut in a dry wall.
The actual leak was a tiny copper pipe spray under the kitchen sink area.
One targeted opening found the source.
If you are in Palm Harbor, East Lake, Highland Lakes, Crystal Beach, Ozona, Greenbriar, Downtown Palm Harbor, or nearby Pinellas County areas and you are dealing with a hidden leak, wet wall, wet floor, or unexplained water bill, contact I Find Leaks before more damage is made.
Start here: I Find Leaks
Or read a similar case study: St. Petersburg Leak Detection: Tiny Copper Pipe Leak Found After Multiple Wall Openings
FAQ: Palm Harbor Water Leak Detection
Can a wall leak actually come from another room?
Yes. Water can travel through wall cavities, under cabinets, along flooring, and behind baseboards before it appears in a visible area. In this Palm Harbor home, the water showed up near a dining room wall, but the leak was found under the kitchen sink area.
Why use infrared for leak detection?
Infrared cameras help identify temperature differences and moisture patterns that may not be visible to the eye. In this case, the FLIR infrared camera helped show that the dining room wall openings were in a dry area.
What does ultrasonic leak detection do?
Ultrasonic listening equipment helps track the sound of pressurized water escaping from a pipe. Jeremy used ultrasonic listening to follow the leak away from the dining room wall and toward the kitchen sink cabinet.
Does I Find Leaks repair the pipe?
I Find Leaks specializes in locating hidden leaks. Once the leak is found, the homeowner can use a licensed plumber to make the repair. This helps the plumber repair the right pipe in the right place instead of searching by cutting.
Who should Palm Harbor homeowners call for water bill questions?
For billing questions, Pinellas County provides water leak and high water bill resources online. For locating the hidden leak inside the home, call I Find Leaks.
